The DRC model is a double rotor bed former shaper designed for intensive soil preparation and is equipped with a reinforced transmission compared to the DRL version, making it suitable for more demanding working conditions. The front rotor, fitted with special blades, works deep into the soil without altering its natural structure, promoting better absorption of water and nutrients. The rear counter-rotating rotor with steel teeth refines the topsoil, levels the surface, and redirects larger clods back
to the front rotor for a second pass, ensuring a uniform texture and optimal seedbed. The combined action of the rotors results in a soft, aerated, non-compacted soil structure, which improves root development and crop growth. The DRC can be configured with bed-forming shaper kits, rear rollers, seed drill supports, and mulching kits, offering maximum flexibility and performance to meet the needs of both farmers and contractors.
Key features that make the difference
Standard equipment:
Standard equipment:
– Universal 3-point hitch cat. 2
– Frontal linkage cat. 2
– Single-sheet frame made of high-strength steel
– Single-speed central gearbox – PTO 540 rpm
– Rotor bearing supports with double sealing
– Reinforced Heavy Duty SKF spherical roller bearings
– Rotor speed: 255 rpm
– Single side transmission by chain ASA 120 HE for front rotor
– CULTI front rotor with 4 blades per flange
– DRC-type blades (40×10 mm flat)
– Single side transmission by chain ASA 100 HE for rear rotor
– Rear rotor Ø 360 mm with Hardox 400 steel tips
– Pair of front discs Ø 460 mm, adjustable in height and width
– Adjustable rear bed former shaper with spring damper
– Stabiliser wheels kit
– Short bed former shaper kit
– Anti-wearing rods for side plates protection
– Cardan drive shaft with safety bolt
– Safety devices according to EU regulations
The choice of the ROTOR
Culti technology:
The CULTI series multi-blade rotor is the ideal solution for ultra-fine soil refinement. Thanks to the dense arrangement of the blades and their specially engineered profile, this rotor ensures uniform clod fragmentation, creating a perfectly prepared seedbed-essential for uniform germination and optimal growth of horticultural crops. The advanced technical design of the rotor, combined with the high-efficiency tooth geometry, enables deep and precise soil tillage in a single pass. The result is a levelled, soft, and well-aerated soil, ready to host delicate crops such as lettuce, lamb’s lettuce, and other leafy vegetables, while also reducing the need for further passes and lowering operating costs.
Frangiter technology:
The Frangiter rotor represents a technological advancement in soil tillage, specifically designed for clayey, compact, and hard-to-manage soils. Its aggressive yet controlled action is ensured by sharp, angled hoe blades with a blade-like geometry, which break clods into fine, uniform particles, creating even and high-performing seedbeds. Thanks to its exclusive design, Frangiter optimizes power transmission to the ground, reducing the load on the tractor. The result is outstanding operational efficiency, with low energy consumption and reduced machine wear. The angled flanges, engineered for optimal soil flow, prevent material buildup even in high-moisture conditions, maintaining consistent working depth and soil refinement quality – even in the most challenging soils.
Material S420
The S420 symbol identifies the use of high-strength special steel for the main structural components of the machine. This material ensures high robustness and superior resistance to deformation, even in highly stressed areas such as weld seams, guaranteeing greater durability and long-term reliability.
Spherical roller bearings
Machines marked with this label are equipped with spherical roller bearings, mounted on hubs and rotor supports. Designed to withstand high radial and axial loads, they provide greater reliability and durability even under heavy-duty conditions. Compared to tapered bearings, they offer 30% higher resistance and, thanks to their self-aligning capability, ensure operational stability and simplified installation without the need for preloading. A technical solution that improves work continuity and reduces machine downtime.
HARDOX 400 material
This logo identifies machines built entirely or partially with Hardox 400 wear-resistant steel, known for its exceptional abrasion resistance and outstanding structural strength. The use of this material also allows for a significant reduction in weight, enhancing performance and long-term durability.
CAMBIARE ADESIVO
ASA HE chain side transmission
The ASA HE chain transmission uses reinforced roller chains with heat-treated, induction-hardened pins to ensure greater fatigue resistance and tensile strength. Ideal for heavy-duty applications and intensive work cycles, such as on heavy machinery and conveyors, this solution offers superior reliability, toughness, and durability compared to standard chains.
Welded steel housing
All machines bearing this label are equipped with a cast iron housing, designed to provide maximum strength and protection for the transmission. Thanks to its excellent heat dissipation capacity, cast iron helps maintain stable lubricant oil temperatures, preventing overheating and ensuring constant and effective lubrication. In addition, its robustness and vibration-damping properties provide greater machine stability, reduce stress on the transmission, and enhance long-term reliability.
Choice of accessory
CARDAN DRIVE SHAFT WITH AUTOMATIC CLUTCH
SIDE DISCS
ADJUSTABLE REAR WHEELS
MOUNTING KIT FOR REAR ROLLER
EXPANDED METAL ROLLER
SMOOTH ROLLER
MOTORISED ROLLER
PAIR OF CONES
PLASTIC KIT FOR SCRAPER OF EXPANDED METAL & SMOOTH ROLLER

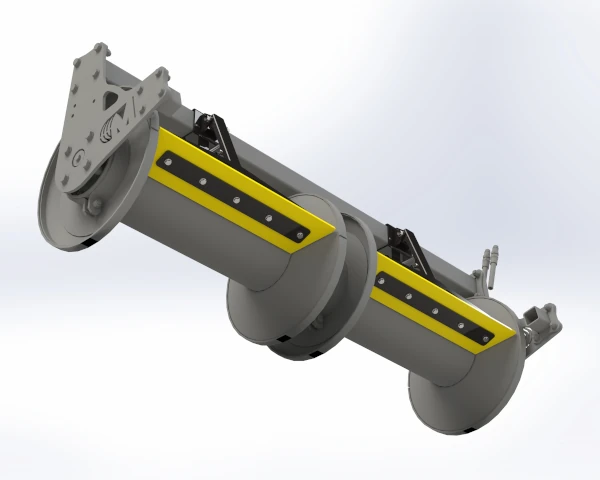

PLASTIC KIT FOR SCRAPER OF CONES ON MOTORISED ROLLER
INDEPENDENT HYDRAULIC SYSTEM WITH HEAT EXCHANGER
REAR HYDRAULIC LINKAGE FOR SEEDER
FIXED TRACK ERASER
TRACK ERASER WITH SHEAR BOLT SAFETY
CUSTOM CONFIGURATIONS
Technical features
| Model | DRC 125 | DRC 145 | DRC 165 | DRC 170 | DRC 185 | DRC 200 |
|---|---|---|---|---|---|---|
| Tractor power min/max (Hp) |
80-140 | 90-140 | 100-140 | 110-140 | 110-140 | 120-140 |
| Working width (cm) |
125 | 145 | 165 | 170 | 185 | 200 |
| Overall width (cm) |
166 | 186 | 206 | 201 | 226 | 241 |
| Number of beds |
1 | 1 | 1 | 1 | 1 | 1 |
| CULTI flanges |
12 | 14 | 16 | 18 | 18 | 20 |
| Total CULTI blades 4x |
48 | 56 | 64 | 72 | 72 | 80 |
| FRAGNITER blades |
9 | 10 | 11 | 12 | 13 | 14 |
| Total FRANGITER blades 6x |
54 | 60 | 66 | 72 | 78 | 84 |
| Weight in standard configuration (Kg) |
970 | 1010 | 1060 | 1120 | 1190 | 1280 |
| Basic configuration: Culti rotor with 4 blades + wheels + side discs Data refer to the machine without optional equipment. Weights and dimensions in the table are indicative and non-binding. |
||||||
